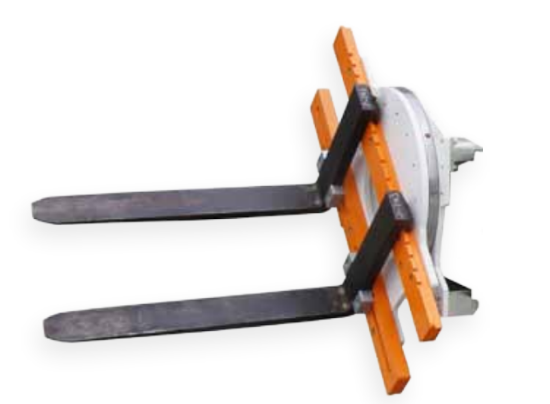

Forklift Rotator 1500kg 360 Degree 800mm Width Class 2

Need both options of using a standard forklift and also 360 degree rotation then look at this forklift rotator. 1500kg forklift rotator fits to Class 2 Forklift
Part No: EW-FR1500-800-2
*
$4,950.00 excl GST

Forklift Rotator 1500kg 360 Degree 800mm Width

Rotate your forklift tynes 360 degrees with a pull on a handle. 1500kg capacity to suit most forklifts.

This 1500kg forklift rotator attaches easily onto a standard Class 2 forklift carriage. One hydraulic function is required for the rotation and can be run off a flow divertor (sold separately) if no spare hydraulic line is available.

Specification:

  • Mounting Class Class 2
  • Load Capacity 1500kg at 500mm Load Centre
  • Frame Width  800mm
  • Max Fork Spacing 715mm
  • Weight  195 kg
  • Lost Load  133mm
Features:
•  Continuous rotation in both directions
•  Concealed drive motor protected from potential damage
•  Excellent driver visibility.

Note forks are not included with the rotator (sold separately). It is recommended to use custom fork tynes with the forklift rotator that are fitted with a load bearing full size 3rd hook on each tyne so that the full load rating of the forks can be supported when the load is inverted on the forklift rotator. Link for the recommended forks is below (other lengths also available on request)
